Description

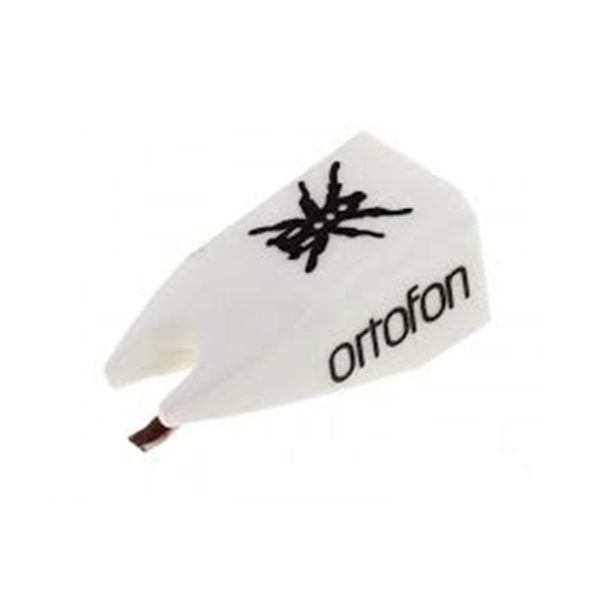

Aguja de recambio para ORTOFON CONCORDE Q.BERT.
Aguja esférica, ideal para Scratch. Fuerza de tracción recomendada: 3,0 g
Fuerza de tracción recomendada: 3,0 g
Potencia de salida: 11 mV
Respuesta en frecuencia: 20-18.000 Hz – 2 dB
Output voltage at 1000 Hz, 5cm/sec. 11 mV
Channel balance at 1 kHz 1,5 dB
Channel separation at 1 kHz 22 dB
Frequency range 20-20.000 Hz
Frequency response 20-18.000 Hz -3 dB
FIM distortion at recommended tracking force, DIN 45.542 < 1%
Tracking ability at 315Hz at recommended tracking force 90 µm
Compliance, dynamic, lateral 12 µm/mN
Stylus type Spherical
Stylus tip radius R 18 µm
Equivalent stylus tip mass 0,6 mg
Tracking force range 2,0-4,0 g (20-40 mN)
Tracking force, recommended 3,0 g (30 mN)
Tracking angle 20°
Internal impedance, DC resistance 1680 Ohm
Internal inductance 920 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-400 pF
Cartridge colour, body/stylus Black/White
Cartridge weight 18,5 g
